Samsung USB to SATA PCB Compatability

Don't Lose Your Data Forever!

DIY data recovery has risks. You could lose your data forever! Don't want to risk it? Talk to a professional now.

polykyle

New member
jol":20udcmmr said:
does the ROM chip getting hot when powered on ?

Sorry for the delay, but yes the ROM chip does get hot on the pcb when power is being sent to it. Any thoughts? Thank you.


jol

New member
polykyle":1rwcmxl0 said:
but yes the ROM chip does get hot on the pcb when power is being sent to it. Any thoughts?
then there is short there
remove it
remove excess solder if needed
use a bit flux
put it place
use a hot air gun (DO NOT PRESS IT DOWN, the short was caused by pressing it down)


smartx21

New member
Hi!
I've got the exactly same situation. USB drive spins but is not detected (led doesn't light). It seems there's something hot on the board, near the connector. Board number is 100760718 REV. C, drive is an Seagate ST1000LM025 PN: HN-M101ABB/ESA 1TB F/W: 2BA30003 from 05/2016. I'm in search for a SATA replacement board. I've got some Samsung ST1000LM024 drives, and tomorrow will try to find the so wanted 100720903 board.
Thanks for any help.
Regards,
Max (Brazil).


adrianf25

New member
Hello

BF41-00311A --> BF41-00315A

I've tested it and it's working.

Best Regards
Adrian from RecuperoDatos.com


Attachments

  • 1552-PCB.jpg
    1.9 MB · Views: 6,903
  • 00161-PCB.jpg
    2.2 MB · Views: 6,903

Jared

Administrator
Staff member
adrianf25":3e43ahz1 said:
Hello

BF41-00311A --> BF41-00315A

I've tested it and it's working.

Best Regards
Adrian from RecuperoDatos.com

Thanks! List updated. :D


vijayan

Member
Jared":3fu6xz4f said:
[post]5745[/post] BF41-00282A --->BF41-00249B


Model : SAMSUNG HM502JX
Serial : 33851F14AAGZ6Q
Firmware : 2AC101C4
Capacity : 500 GB (976 773 168)

BF41-00282A --->BF41-00249B

THIS OLD PCB USB TYBE SATA PCB CONVERTED BUT THIS TYBE NO ROM IC MICROCONTROLLER REPLACED AFTER WORKING

THANK YOU ----DATA MEDICS


Attachments

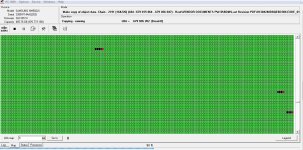

  • 3.JPG
    421.6 KB · Views: 6,612
I have same issue

Patient HM502JX/VPK BF41 00282A 00 usb Korea
Donor Hm500JI BF41 00294B 02 Sata China

Patient had water damaged. Clicking nonstop. PCB light working. But It's usb PCB. I am not sure about is PCB still good .
I couldn't get ROM .There is no external Rom chip. Tried to line Sata connector (removed 4 capacitors ). tried to RX TX point to read. But couldn't.


So I have 2 question.

1)Is that PCB compatible . Is this drive has unique ROM ? Do I have to read ROM from patient.
2) Is it compatible for head swap. (I guess % 25 )

Thanks.
