Hi, anyone know how to connect terminal to 800067-001 ?



Freddy

New member
I solved two cases ... one in 2021 and now confirmed it with second one today WD5000LMVW-11VEDS0 from 21.Sept 2013 USB was 2060-771949 => SATA was 2060-771931 worked flawless after head change:)

I have 5 TB passport 810035 USB. Cant find any compatible SATA PCB number. Either unlocked PCB
Would wiring to SATA help me to access SA ? Is this PCB has locked ROM?
Thanks.

I would TRY to unlock ROM with MRT. Letme see what MRT could do


gazishahin

New member
I have 5 TB passport 810035 USB. Cant find any compatible SATA PCB number. Either unlocked PCB
Would wiring to SATA help me to access SA ? Is this PCB has locked ROM?
Thanks.

I would TRY to unlock ROM with MRT. Letme see what MRT could do
Hi, I have also a case with same pcb. Did you find any solution? Please let us know.


Jared

Administrator
Staff member
Would wiring to SATA help me to access SA
No, but if the drive is otherwise functional, it would allow reading decrypted sectors. Fortunately, PC-3000 now supports creating an unlocked ROM for these, I do believe.

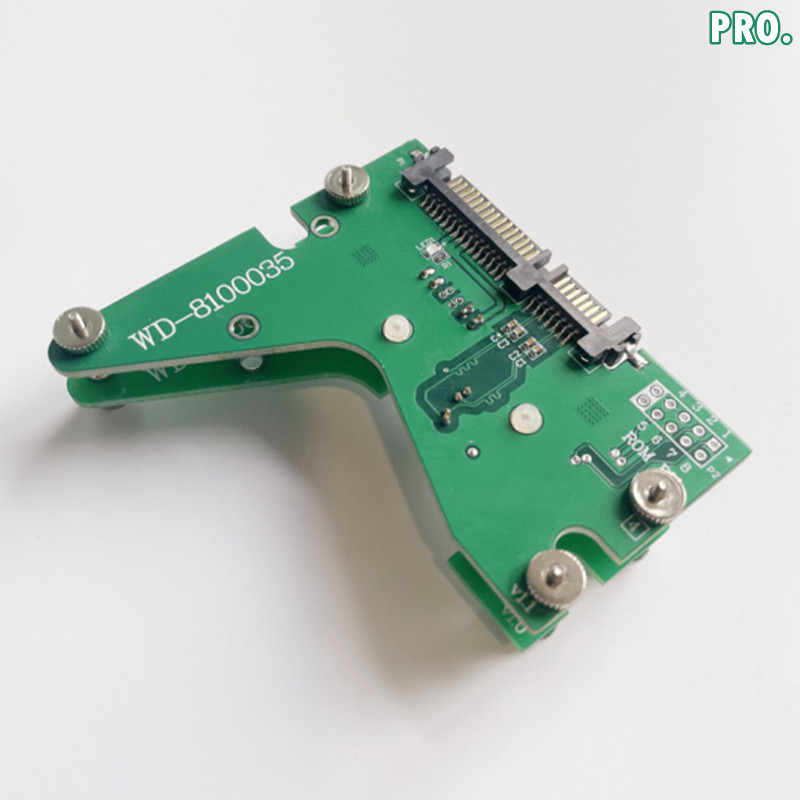

You'll need an unlocked PCB to actually to work with the SA, but I believe without the original main controller chip, the data will be encrypted. So at some point, you'll probably need to switch back to the original PCB and either wire in a SATA connection or use one of these adapters for the data reading part:
